What are degrees of freedom in industrial robots? Are more degrees of freedom always better?

What are the degrees of freedom in industrial robots?

In industrial robots, degrees of freedom typically refer to the number of spatial directions in which the robot can move independently, that is, the number of axes in which the robot's end effector (such as a welding torch, gripper, etc.) can move or rotate independently in three-dimensional space.

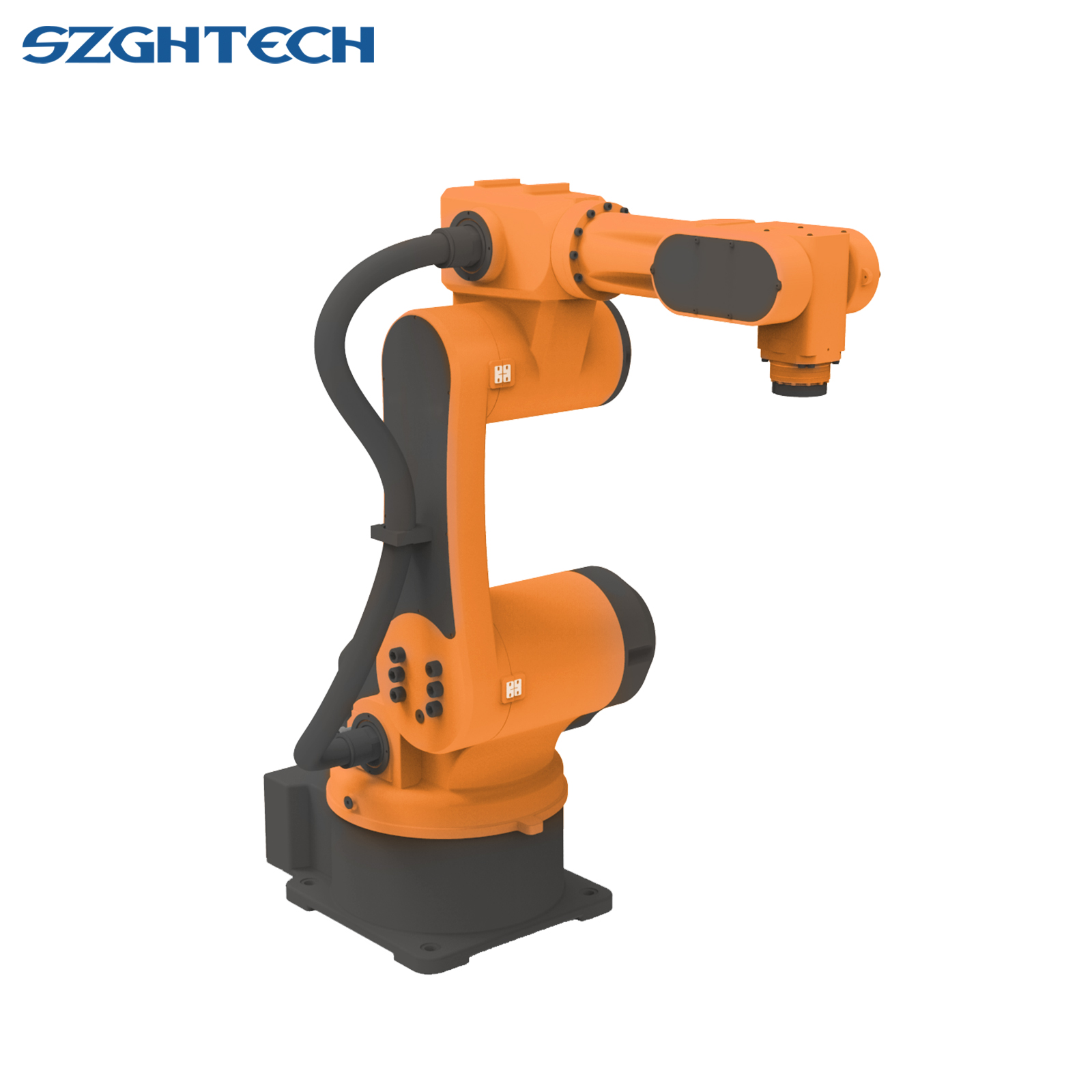

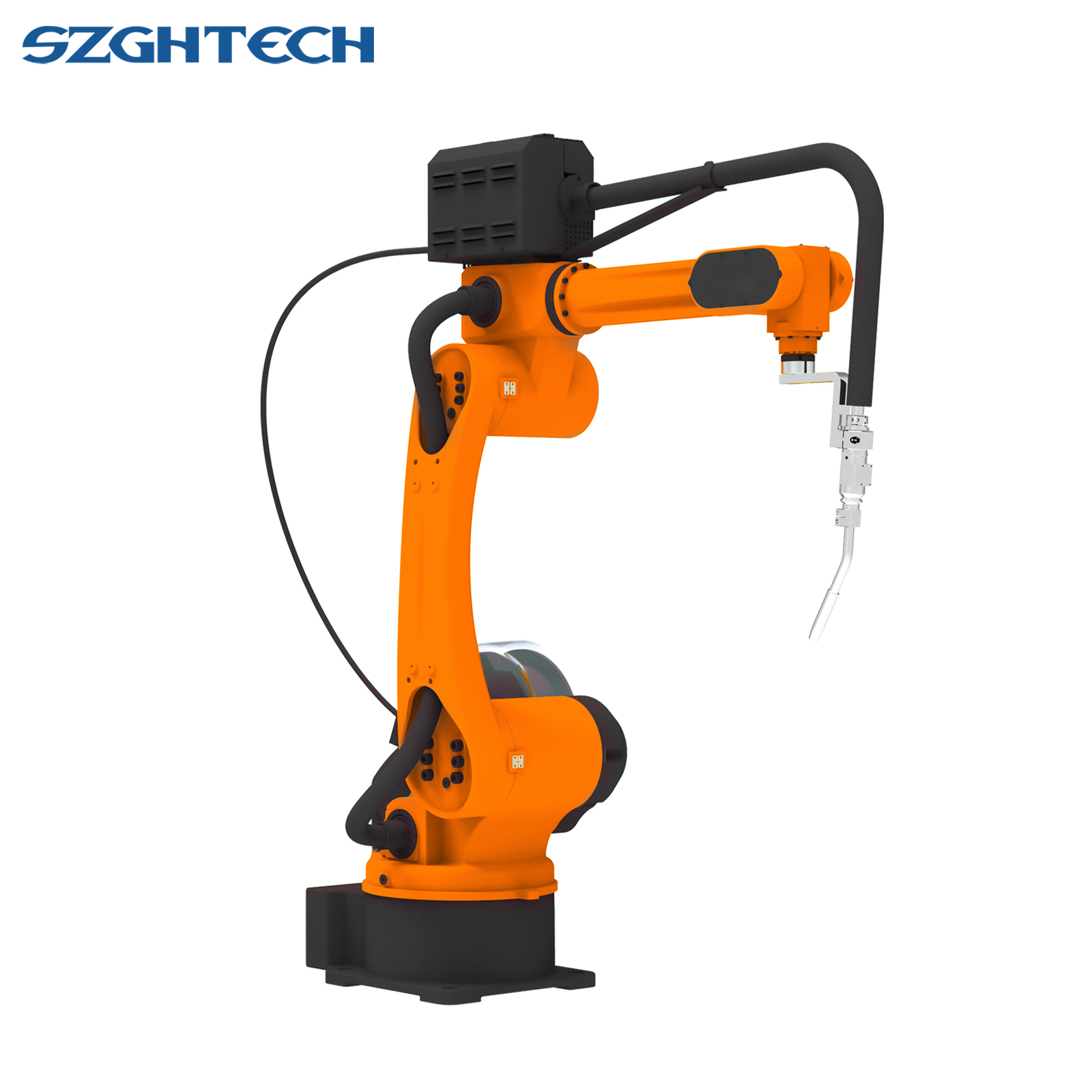

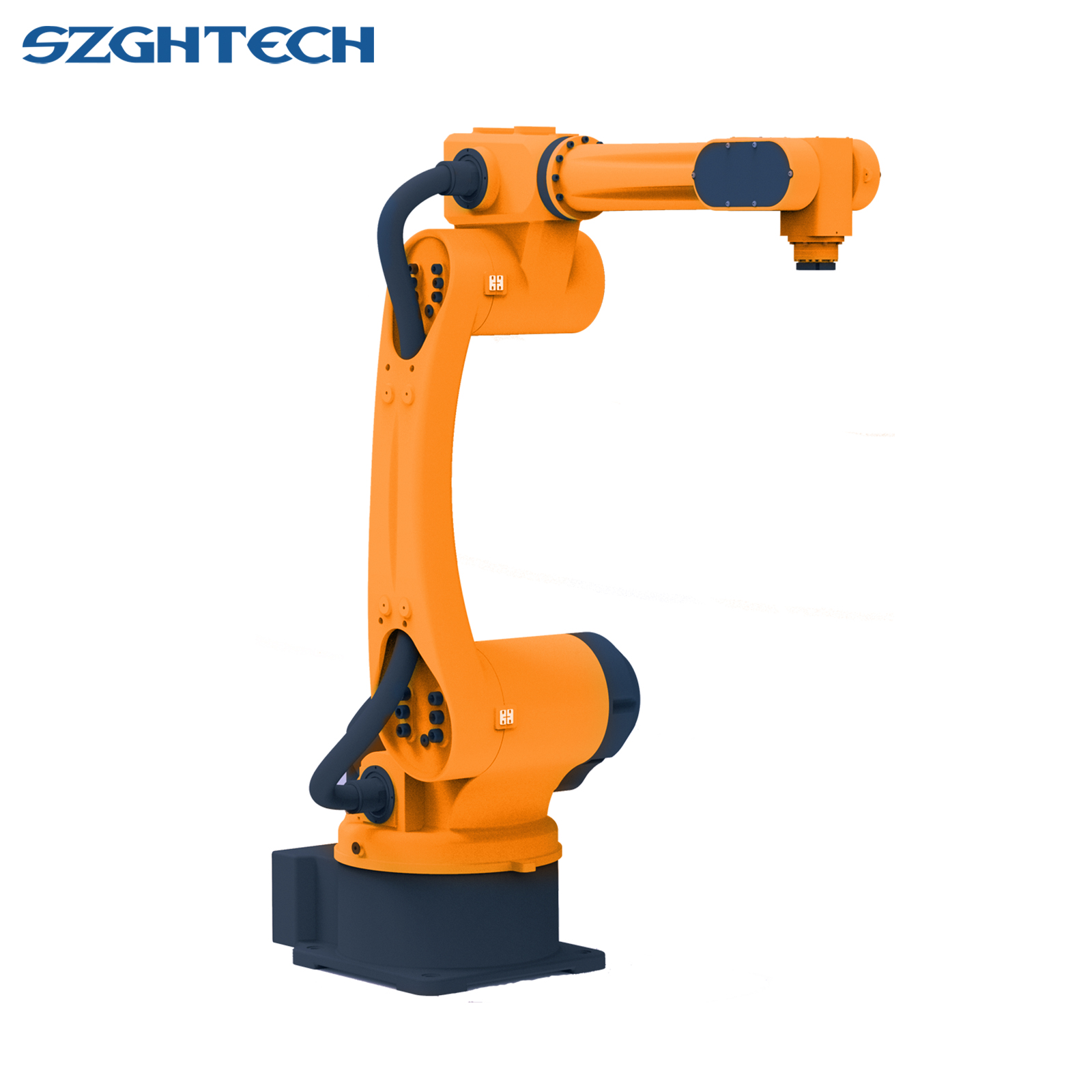

Common six-axis robots (such as SZGH T1500-C-6 and T1850-D-6 models) have 3 translational degrees of freedom and 3 rotational degrees of freedom, enabling flexible operation across the entire spatial range.

Four-axis SCARA robots are more focused on high-speed, precise operations in the horizontal plane.

Three-DOF Delta robots also excel in lightweight sorting.

Key point: More degrees of freedom do not necessarily mean better performance; the choice must be tailored to the specific task scenario.

The impact of degrees of freedom on robot performance

1. Task Flexibility: Matching Degrees of Freedom to Operational Requirements

The degree of freedom (DoF) of a robotic arm is a fundamental parameter that directly defines its operational flexibility and range of applicable tasks. Low degrees of freedom, typically ranging from 1 to 3 axes, are engineered for simple, repetitive path tasks where spatial complexity is minimal. These robotic systems excel in applications such as material handling, basic sorting, and pick-and-place operations in conveyor belt assembly lines. For instance, in e-commerce warehouses, 2-axis robotic arms efficiently transfer packages between sorting stations and shipping containers, following fixed linear or planar paths with consistent speed and reliability. Their design simplicity translates to straightforward control logic—often relying on basic programmable logic controllers (PLCs) rather than advanced motion control systems—and significantly lower maintenance costs. With fewer moving parts, wear and tear are minimized, reducing downtime for repairs and replacement components. This makes low-DoF robots an economical choice for small to medium-sized enterprises (SMEs) or industries with high-volume, low-complexity production needs, such as food packaging, where consistent throughput and cost efficiency are prioritized over spatial adaptability.

In contrast, high degrees of freedom (4 to 6 axes) empower robotic arms with enhanced spatial maneuverability and the ability to adjust end-effector posture with exceptional precision. These systems are indispensable for complex manufacturing processes that demand intricate path following and multi-planar movement. For example, in automotive manufacturing, 6-axis robotic arms are the backbone of painting and precision welding operations. During automotive painting, the robot must navigate around curved surfaces, door frames, and engine bays while maintaining a consistent distance and angle between the spray nozzle and the vehicle body—ensuring uniform coating thickness and avoiding overspray. Similarly, in precision welding for aerospace components, 5 or 6-axis robots can access hard-to-reach joints, adjust their orientation in real-time to compensate for minor part variations, and execute complex weld paths with sub-millimeter accuracy. Beyond manufacturing, high-DoF robots find applications in surgical robotics, where 6-axis systems mimic the dexterity of human hands to perform minimally invasive procedures, and in logistics for palletizing irregularly shaped objects that require dynamic posture adjustments.

2. Control Precision and Structural Rigidity: The Tradeoffs of Increased Degrees of Freedom

While higher degrees of freedom unlock greater operational flexibility, they introduce significant technical challenges related to control precision and structural rigidity. Each additional axis adds a moving joint—such as revolute or prismatic joints—which increases the complexity of the kinematic chain. This requires more advanced control algorithms, including inverse kinematics solvers, to calculate the exact position of each joint in real-time and ensure the end-effector follows the desired path accurately. Moreover, high-DoF robots rely on high-performance servo systems with rapid response times and precise torque control to coordinate the movement of multiple joints simultaneously. Without such advanced control systems, error accumulation becomes a critical issue: small inaccuracies in one joint’s movement can compound across the kinematic chain, leading to significant deviations from the target path. For example, in a 6-axis welding robot, a 0.1mm error in the base joint could result in a 1mm error at the welding torch—rendering the weld defective in high-precision applications like aerospace component manufacturing.

Dynamic stability is another key concern with high-DoF robots. As the number of moving joints increases, the robot’s inertia changes more rapidly during movement, increasing the risk of vibrations or oscillations—especially at high speeds. This not only affects positional accuracy but also can damage delicate workpieces or compromise the integrity of the operation. To mitigate these issues, manufacturers must invest in robust structural design, using high-strength materials such as carbon fiber or aluminum alloys to balance rigidity and weight. Additionally, advanced motion planning algorithms, such as trajectory optimization and vibration damping control, are employed to smooth joint movements and minimize dynamic disturbances. For instance, in surgical robotics, real-time force feedback sensors are integrated with the control system to detect and compensate for tissue resistance, ensuring the robot moves with the same gentleness and precision as a human surgeon. In contrast, low-DoF robots benefit from simpler kinematic structures, with fewer joints to coordinate, resulting in inherently better dynamic stability and lower error accumulation. Their control systems can rely on basic proportional-integral-derivative (PID) controllers, which are cost-effective and easy to tune, making them ideal for applications where absolute precision is less critical than consistency.

3. Cost and System Complexity: Quantifying the Impact of Additional Axes

The cost implications of increasing a robot’s degrees of freedom are substantial and multifaceted. On average, each additional axis increases the total cost of the robotic system by 15% to 30%, a figure that reflects not just the cost of the additional joint and actuator but also the associated upgrades to control systems, software, and structural components. For example, a basic 2-axis pick-and-place robot may cost around10,000,whilea4−axismodelwithsimilarpayloadcapacitycouldrangefrom15,000to20,000,and ahigh−performance6−axisrobotcanexceed50,000. This cost premium stems from several factors: high-precision servo motors and encoders for each joint, advanced motion control software with inverse kinematics capabilities, and the engineering required to integrate multiple joints into a rigid, reliable structure.

Beyond the initial purchase price, high-DoF robots incur higher ongoing costs related to maintenance, calibration, and operator training. The increased number of moving parts means more components are prone to wear, requiring regular lubrication, inspection, and replacement. Calibration is also more complex and time-consuming for high-DoF systems—any misalignment in a single joint can affect the entire robot’s performance, necessitating specialized equipment and skilled technicians. Additionally, operators and programmers require advanced training to work with high-DoF robots, as they must understand complex kinematics, motion planning, and troubleshooting techniques. This adds to the total cost of ownership, especially for SMEs that may lack in-house technical expertise.

System complexity is another critical consideration. High-DoF robots require seamless integration with other manufacturing systems, such as vision systems for part detection and quality control, and programmable logic controllers (PLCs) for process coordination. This integration often involves custom software development and compatibility testing, which can extend project timelines and increase implementation costs. In contrast, low-DoF robots are easier to integrate into existing production lines, with standardized interfaces and simpler programming languages that allow for quick setup and deployment. For example, a 3-axis robotic arm for packaging can be programmed in a matter of hours using a teach pendant, while a 6-axis welding robot may require weeks of programming and calibration to optimize its performance for a specific application.

Conclusion: Selecting the Right Degree of Freedom

The choice between low and high degrees of freedom ultimately depends on the specific requirements of the application, balancing operational flexibility, precision needs, and budget constraints. Low-DoF robots are ideal for simple, repetitive tasks where cost efficiency and reliability are paramount, while high-DoF robots are necessary for complex operations that demand spatial adaptability and precision. Manufacturers must carefully evaluate factors such as task complexity, required precision, production volume, and total cost of ownership when selecting a robotic arm, as the degree of freedom directly impacts the system’s performance, scalability, and return on investment. As robotics technology continues to advance, we can expect to see further innovations in control systems and structural design that reduce the tradeoffs between flexibility, precision, and cost—enabling more industries to leverage the benefits of robotic automation.

More complex systems mean a simultaneous increase in programming difficulty and maintenance costs, placing higher demands on maintenance personnel.
