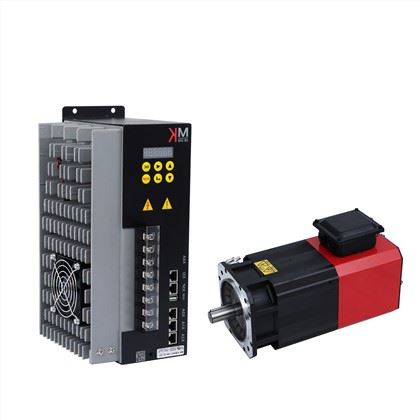

11KW Servo Spindle Driver


Products comply with international standard,improved with CE certification. Setup mulitiple protection circuit,the comprehensive protection of safety equipment.
Send Inquiry

0X9A5601(001)

Input Power

Rated Voltage/frequency

Three-phase 380V/480V;50Hz/60Hz

Allowable Voltage range

+10%~-15%

Allowable Frequency Fluctuation

± 5%


Speed Adjustment Range

0.01~500Hz

Speed Stabilization Precision

± 0.1%

Acceleration/Deceleration time

0.05~3000Hz/s

Torque Control

200% Rated torque output;Torque precision ±5%

Braking Mode

Powered Braking

Overload Capacity

Twice Overload

I/Os

Digital Input

10 points , NPN or PNP(Optional)

Digital Output

6 points , NPN

Relay Output

2pcs ,DC30V/1A Or AC250V/1A

Analog Input

2 inputs, A0:±10V; A1: 0~±10V Or 4~20mA
(Optional)

External Pulse Input

1 type ,ABZ phase pulse ,Pulse+Direction Or
CW (Optional)

Motor Encoder Input

1 type,RS422 TTL , Rotatry Connector(Optional)

Motor Encoder Output

1 pcs,RS42TTL ,Output Frequency Range:
0~1MHz

Protection Function

Over-Voltage Protection,Low-Voltage Protection,Over-Current Protection,Over-Heat
Protection, module Protection,Overload Protection,Output Short-Circuit Protection,
Encoder's abnormal Protection

WorkingEnvironment

Operating Site

The product shall be mounted verticlly in the
electric control cabinet with good ventilation.
The product shall be installed in the environment
free from direct sunligh ,dust,corrosive gas,
sombustible gas,oil mist,steam and drip

Ambient Temperature

-10℃ ~ +45℃

Humidity

5~90%, not allow condensing

Vibration

Under 20Hz:1G; 20~50Hz: 0.2G

1.All raw material checked once it arrive our factory.

2.All pieces and logo and all details checked during production.

3.All packing details checked during production.

4.All production quality and packing checked on final inspection after finished.

Safe & Reliable

Products comply with international standard,improved with CE certification. Setup mulitiple protection circuit,the comprehensive protection of safety equipment.

And also it can also be customized manufactured according to the user's specific applications, conveniently connected to CNC controller, HMI, PLC and other control devices.



16.5

FAQ

1. How can we get a quote?

Contact us with specification: such as power ,torque ,application,axis etc.

2. What's the trade term and payment term?Amount less than $1000, 100% paid before production, more than $1000 can be negotiated!

T/T, Western Union, PAYPAL etc.


Send Inquiry
